1010 music midi adapter: type b male 3.5mm trs to female 5 pin din price : $9.95

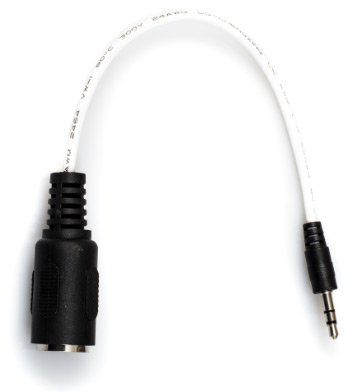

the midi adapter has a male 3.5mm trs minijack at one end, and a female 5 pin din midi connector on the other, and is 22 cm/8.5" long.

it is compatible with the 1010music bitbox, fxbox, and the mx4. it allows you to connect a standard midi cable to all our products.

connect your trs type b devices to standard midi 5 pin din cables
this midi adapter enables you to connect midi devices that use standard midi cables to the stereo minijacks that use the type b standard. the adapter has a male stereo minijack at one end, and a female 5 pin din midi connector on the other, and is 22 cm/8.5" long. it is also useful as a converter for connecting to other midi devices that use a different mapping of midi signals to the stereo minijacks.

early 1010music music products use the type b mapping of midi signals to stereo minijacks. bitbox mk2 and bitbox micro can use mini trs type a or type b for midi inputs. bitbox micro uses type b for midi outputs.

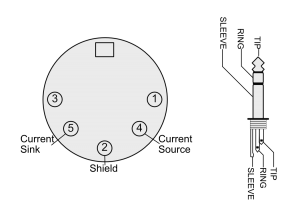

the diagram below shows the numbering of the pins on a midi connector and the labels of the connection components of a stereo minijack. type b products are compatible with cables that use the following mapping of midi signals between female midi connectors and stereo minijacks.


specifications:
copper core
nickel plated brass connectors
type b midi mapping
8.5" (22 cm) long
end 1: male stereo minijack
end 2: female 5 pin din midi connector
