1010 music 4 ft midi cable: male 3.5mm trs to 5 pin din price : $9.95

this cable enables you to connect midi devices that use standard midi cables to the stereo minijacks that use the type b standard. the adapter cable has a male stereo minijack at one end, and a male 5 pin din midi connector on the other, and is 1.42 meters/4' 8" long.

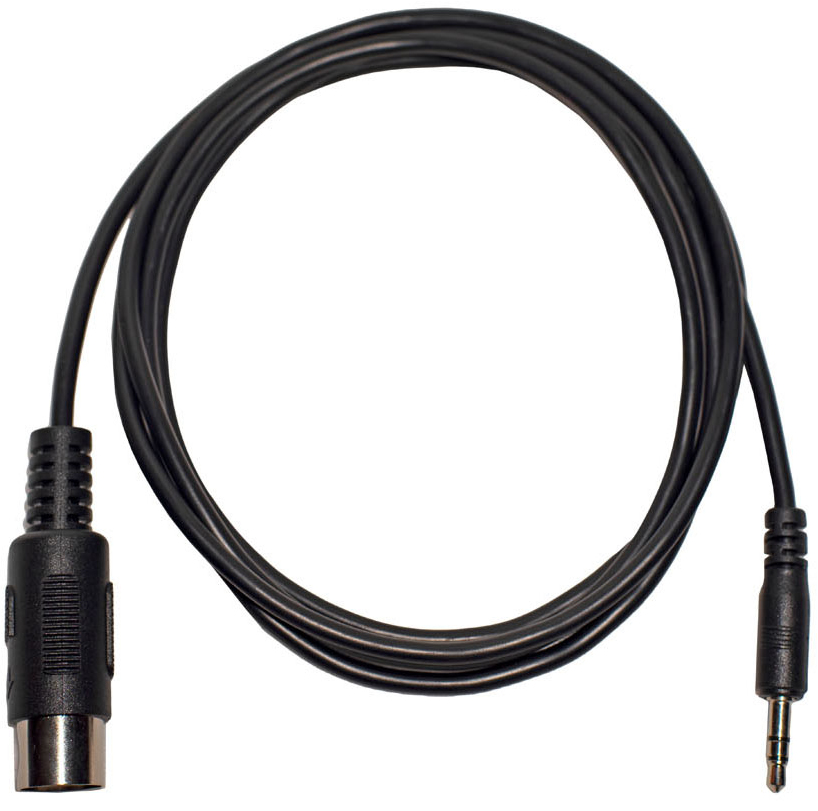

a 4 ft type b midi cable
this cable enables you to connect midi devices that use standard midi cables to the stereo minijacks that use the type b standard. the adapter cable has a male stereo minijack at one end, and a male 5 pin din midi connector on the other, and is 1.42 meters/4' 8" long. it is also useful as a converter for connecting to other midi devices that use a different mapping of midi signals to the stereo minijacks.

early 1010music music products use the type b mapping of midi signals to stereo minijacks. bitbox mk2 and bitbox micro can use mini trs type a or type b for midi inputs. bitbox micro uses type b for midi outputs.

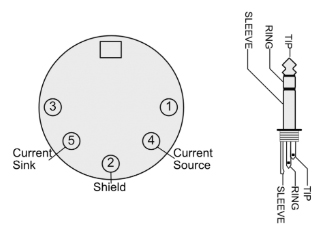

the diagram to the right shows the numbering of the pins on a midi connector and the labels of the connection components of a stereo minijack. type b products are compatible with cables that use the following mapping of midi signals between female midi connectors and stereo minijacks


specifications:
copper core
nickel plated brass connectors
type b midi mapping
4' 8" (1.42 meters) long
end 1: male stereo minijack
end 2: male 5 pin din midi connector
